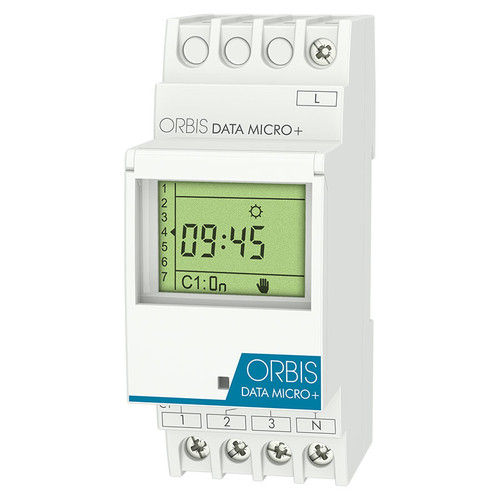

DATA MICRO+ Digital Time Switch, 1 or 2 Changeover, Available 230V or 120V

Write a Review
SKU:
DATA MICRO+
£44.02 inc. VAT
£36.68 ex. VAT
Shipping:
Calculated at Checkout

Description

The DATA MICRO is ideal for easy programming of electric loads such as irrigation pumps, lighting, air conditioning, school siren, preheating of machines...

Order Details:

SKU

Specification

Output Circuit

DATA MICRO1+/230

230V AC, 50/60Hz

1 Changeover

DATA MICRO1+/120

120V AC, 50/60Hz

1 Changeover

DATA MICRO2+/230

230V AC, 50/60Hz

2 Changeover

DATA MICRO2+/12

12V AC/DC, 50/60Hz

2 Changeover

DATA MICRO2+/120

120V AC, 50/60Hz

2 Changeover



Features:

  • Icon menu programming
  • Up to 32 daily and weekly programs
  • One or two switched output contacts
  • Digital time switch for second, daily or weekly programming
  • Installation on DIN rail, two modules wide
  • Simple icon-guided programming
  • Up to 32 daily or weekly programs
  • It allows to program pulses from 1 sec. and vacation period of up to 99 days that deactivates the schedules
  • Manual activation or deactivation of temporary or permanent type
  • Automatic winter / summer time change for Europe, deactivated or programmable
  • One or two Contact versions: s switched
  • Power reserve battery up to 4 years
  • Sealable transparent window to prevent unauthorized manipulations

Product Data Sheet DOWNLOAD DATA SHEET

Extra Information

Brand:
ORBIS
Power supply:
230 V ac ± 10 %
Nominal frequency:
50 Hz / 60 Hz
Power consumption:
7,3 VA (1,2 W)
Power reserve:
4 years without power supply with non-replaceable Lithium battery
Type of contact:
NO NC
Minimum switching time:
1 sec
Number of circuits:
1 / 2 (voltage free)
Number of programs:
32
Degree of protection:
IP20 according to EN 60529
