Description

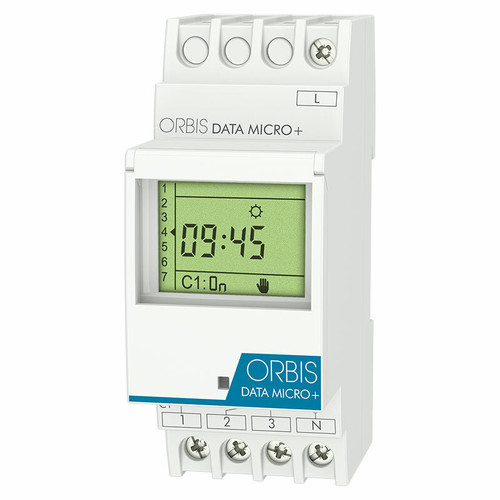

The DATA MICRO is ideal for easy programming of electric loads such as irrigation pumps, lighting, air conditioning, school siren, preheating of machines...
Order Details:
| SKU | Specification | Output Circuit |
| DATA MICRO1+/230 | 230V AC, 50/60Hz | 1 Changeover |
| DATA MICRO1+/120 | 120V AC, 50/60Hz | 1 Changeover |
| DATA MICRO2+/230 | 230V AC, 50/60Hz | 2 Changeover |
| DATA MICRO2+/12 | 12V AC/DC, 50/60Hz | 2 Changeover |
| DATA MICRO2+/120 | 120V AC, 50/60Hz | 2 Changeover |
Features:
- Icon menu programming
- Up to 32 daily and weekly programs
- One or two switched output contacts
- Digital time switch for second, daily or weekly programming
- Installation on DIN rail, two modules wide
- Simple icon-guided programming
- Up to 32 daily or weekly programs
- It allows to program pulses from 1 sec. and vacation period of up to 99 days that deactivates the schedules
- Manual activation or deactivation of temporary or permanent type
- Automatic winter / summer time change for Europe, deactivated or programmable
- One or two Contact versions: switched
- Power reserve battery up to 4 years
- Sealable transparent window to prevent unauthorized manipulations
Document Downloads
Extra Information
Brand:
ORBIS
Type:
Digital
Number of Channels:
1
Number of Programs:
32
Day Settings:
Daily, Weekly, Seconds
Operating Voltage:
120V AC
Switching Capacity:
16(10) A / 250V AC
Mounting Options:
DIN Rail
Power Reserve:
4 Years
Manufacturer Part Number:
OB172062N
