Description

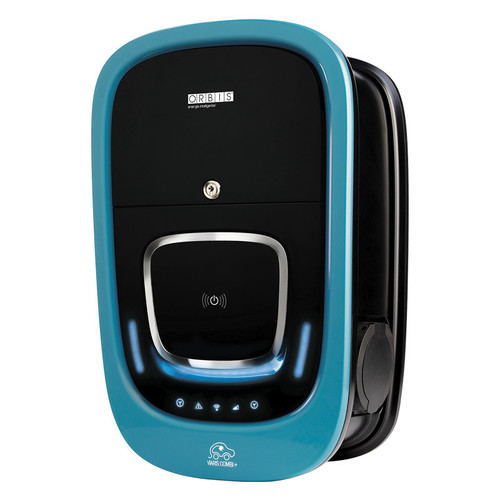

The VIARIS COMBI+ is a Type 2 Dual Tethered Smart Charger with an attractive design, easy operation, trouble free installation and are suitable for all EV and PHEVs in commercial and residential environments. Ideal for larger projects and multi-user dwellings.
- Mode 3 Electric Vehicle Charging Point
- Three Phase, 22kw Power Output
- Dual Tethered Output, Type 2
- 10m Charging Cable
- A Charge Modulator enabling you to maximise your charge and minimise home disruption.
- Touch and RFID activation set via the mobile app includes 5 RFID cards
- LED Status indicator and vehicle charge progress
- High strength and high heat distortion temperature
- IP54 protection
- IK10 Impact resistant enclosure
- DC Residual Current Protection (RCD)
- Wi-Fi communications for remote firmware updates
- Ethernet Port
- Mobile app for greater control and insights
- Mobile phone notifications
- Set your own charging times
- Standard MQTT network protocol
- OCPP 1.6 communication protocol
- Optional MID energy meter
Extra Information
Brand:
ORBIS
Power supply:
Three Phase, 3x32A, 22kW
Charge Point Power Outlets:
AC
Current Rating (Amps):
3x32
Voltage Rating (V):
400
Power Output (kW) Fast AC:
22
Charging Mode:
Mode 3
Number of Outlets:
2
IP Rating:
IP54
Degree of Mechanical Protection:
IK10
Electrical Protections:
DC residual-current protection (RCD)
MID KwH Meter:
No
Wi-Fi:
Enabled
Ethernet Connection:
Yes
Nominal frequency:
50 Hz
Indicator light:
Yes, charger status and vehicle charging
Charge Modulator:
Yes
Touch Sensor On / Off:
Yes
RFID Reader:
Enabled
Socket or Tethered:
Tethered, Type 2
Tethered Cable Length:
10m
