ACKIT-4: Complete Access Control Kit with IP65 External Proximity Reader

The ACKIT-4 is a fully-equipped door security solution, designed to reinforce both security and user convenience at your facility's access points. This kit assembles the innovative PX2000 Power Supply & Keypad, the robust RD26-C External Reader, the reliable EBGBWOC02/PTE Green Dome Switch, the secure EDR-1 Call Point, the strong ML600 Magnetic Lock, the versatile BK600ZL Bracket, and user-friendly KP-FOB Proximity Fobs, forming a complete system ideal for varied secure access control scenarios.

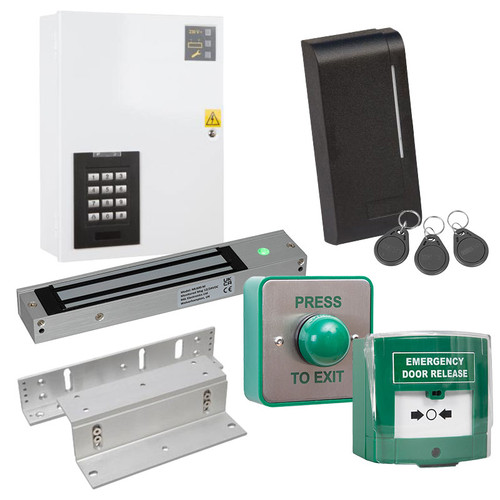

Kit Includes:

• 1 x PX2000 Power Supply & Keypad
• 1 x RD26-C External Reader
• 1 x EBGBWOC02/PTE Green Dome Switch
• 1 x EDR-1 Call Point
• 1 x ML600 Magnetic Lock
• 1 x BK600ZL Bracket
• 5 x KP-FOB Proximity Fobs

Product Features:

PX2000 Power Supply & Keypad:

• Combines power supply and keypad, supporting external Wiegand readers
• Accommodates up to 500 users with a 13.8VDC regulated output
• Options for 2amp or 3amp supply available; additional battery charging feature
• Houses batteries up to 12V 2.8Ah; compliant with EMC EN61000-6-1 & 3

RD26-C External Reader:

• High impact, IP65 encapsulated plastic reader suitable for external use
• 9-12VDC power supply at max 50Ma; 26 bit, 125kHz EM formatted reader
• Wiegand 4-wire connection with a card read time of 120mS
• Compact, weather-resistant design with LED indication and simple controller wiring
• Works seamlessly with RGL KPX2000 and PX2000

EBGBWOC02/PTE Green Dome Switch:

• Momentary operation with double pole N/O - N/C contacts, 4 AMP output
• High impact plastic, easy to install in diverse environments

EDR-1 Call Point:

• Single pole emergency door release, IP24 rated with audible/LED indicators
• Resettable, lit continuously; turns red upon activation or alarm

ML600 Magnetic Lock:

• 280kg holding force, 12/24 VDC powered, fire-tested, slim aluminium design
• Built-in surge protection with minimal residual magnetism

BK600ZL Bracket:

• Adjustable Z & L bracket set, designed for inward opening doors
• Anodised aluminium, compatible with all RGL slimline maglocks

KP-FOB Proximity Fobs:

• 125kHz frequency key fobs, enhancing access convenience with the KPX1000 Keypad
